DESCRIPTION

The RUBI range of DC-250 PYTHON electric cutters is designed with high-precision mobile head machines that offer the professional ceramic tile installer maximum functionality and reliability.

The DC-250 PYTHON is ideal for intensive cutting of tiles and glazed stoneware, as well as for cutting porcelain stoneware or occasional cutting of natural stone.

Available in two models: 850 and 1200, with maximum cutting lengths of 38.5" inches and 47.6" inches respectively.

The sliding motor assembly, on bearings, of the DC-250 PYTHON offers maximum precision and cutting quality, as well as the possibility of making miter cuts on pieces up to 33" inches (85cm) in the 850 model, and 42.5" inches (108cm) in the model 1200. The 1.5 CV motor, with a thermal protector, is perfect for cutting porcelain stoneware pieces.

The DC-250 PYTHON electric cutters include the C3 PYTHON adjustable cooling system that allows the drop point of the water to be adjusted according to the thickness of the material, achieving a direct impact on the water of the cutting point. This allows to increase the EFFICIENCY of cooling and reduces water dispersion.

Its removable aluminum tables facilitate cleaning and maintenance of the DC-250 PYTHON electric slicers and the folding legs system with built-in wheels that facilitates the mobility and handling of the slicers.

The DC-250 PYTHON includes an Arrowhead 10" diamond blade; ref#31900

The continuous band disc will allow you to execute cuts with optimal results and good performance. Thanks to the approved protector, the DC-250 PYTHON are machines also compatible with TURBO and SEGMENTED discs.

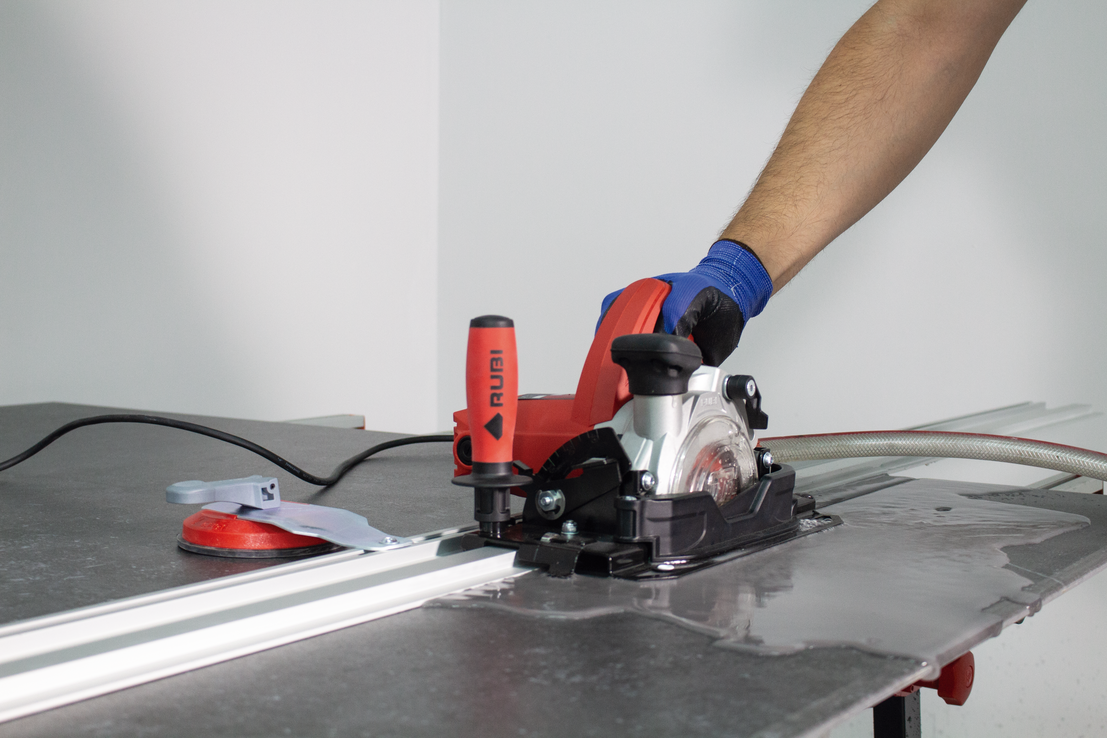

The TC-125 kit is part of the SLAB system for ceramic sheet and large format tiles, and includes all the elements necessary for cutting these materials.

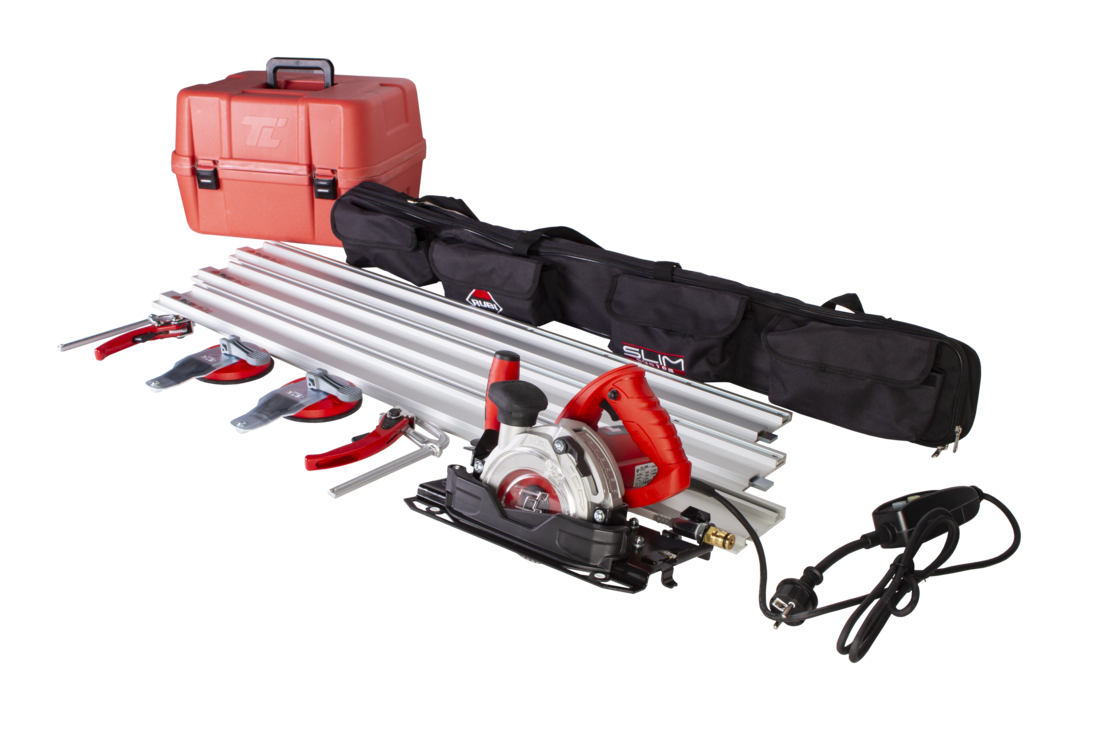

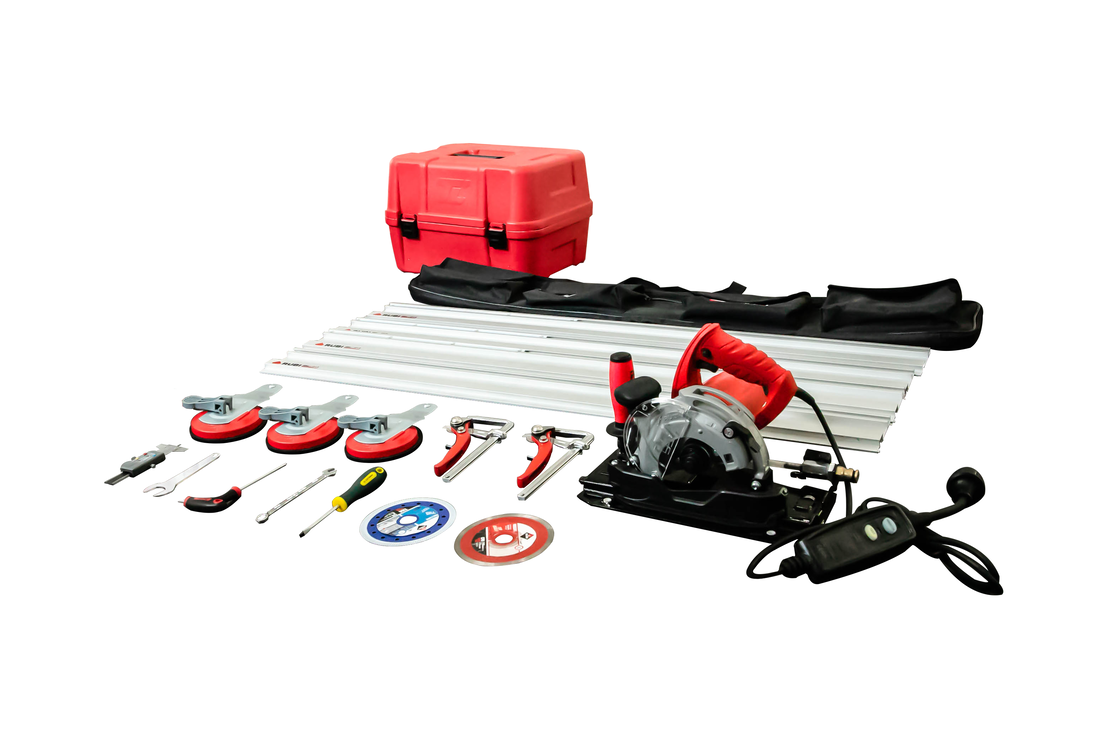

The kit includes:

• The circular cutter TC-125.

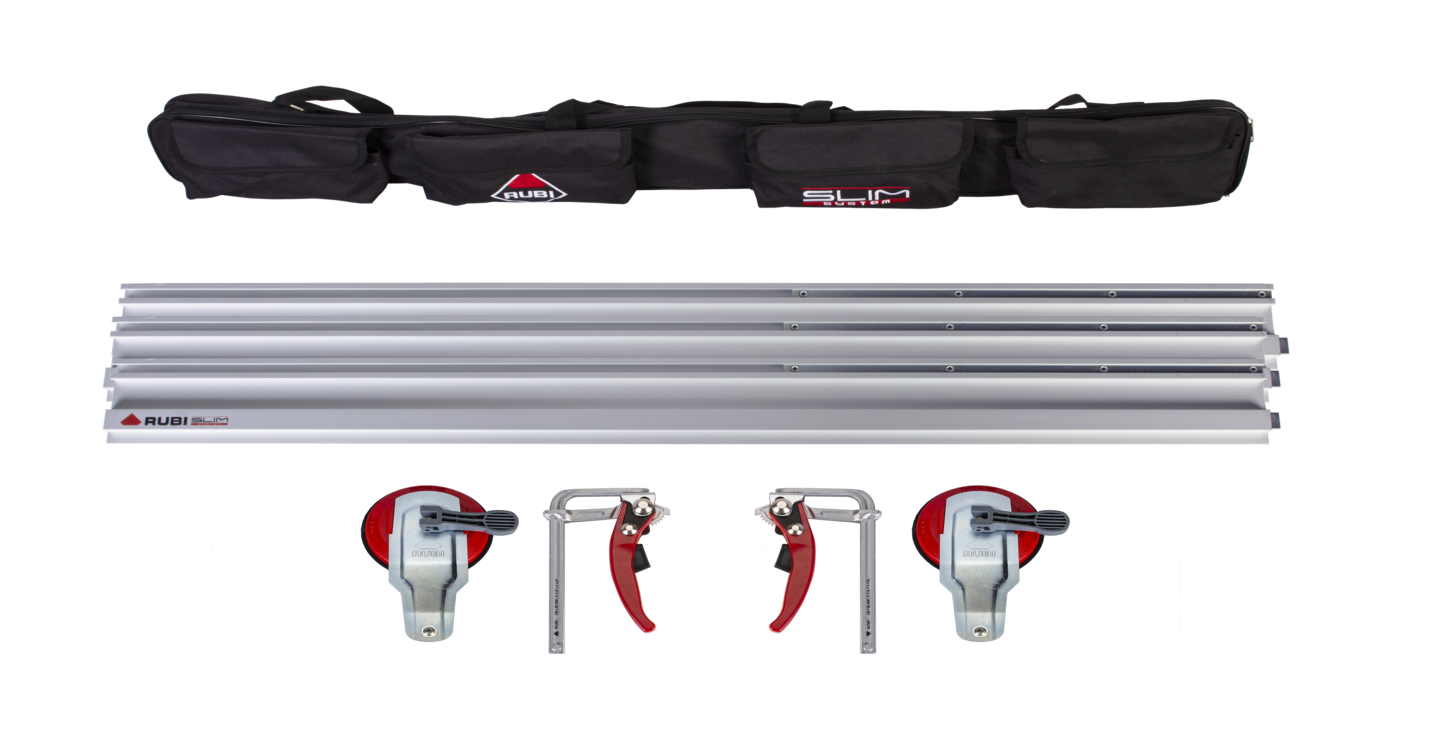

• 3 SLIM CUTTER guides of 110 cm, each. (For the proper functioning of the TC-125, the use of these guides is NECESSARY).

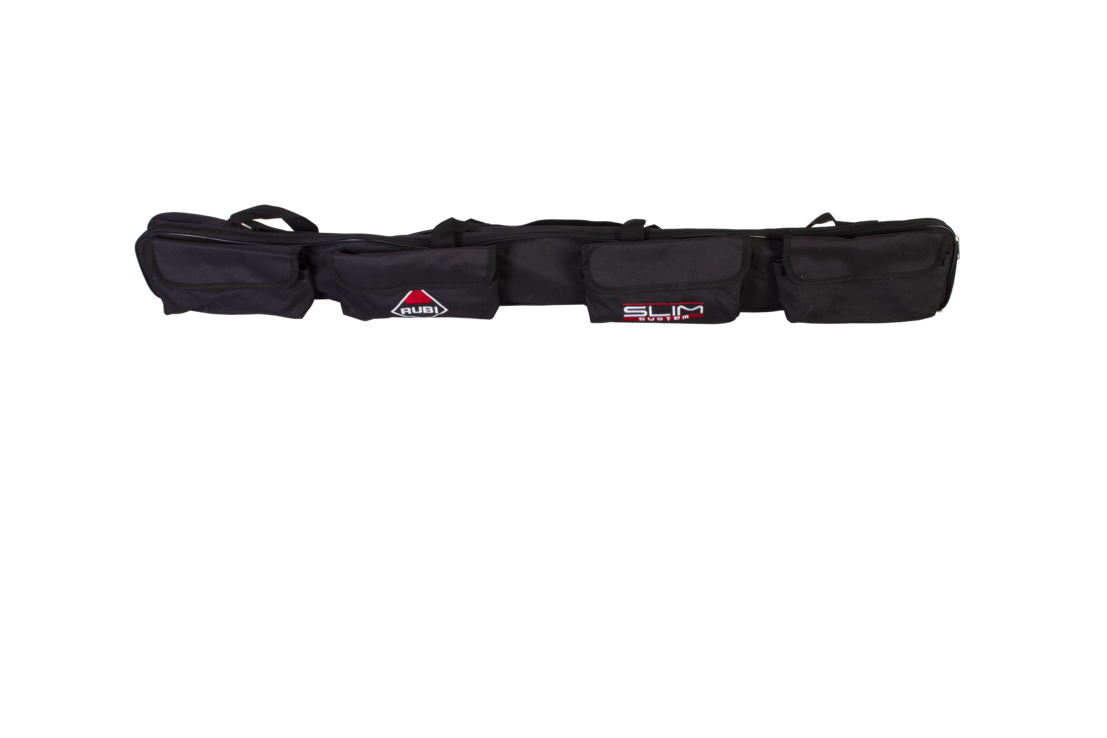

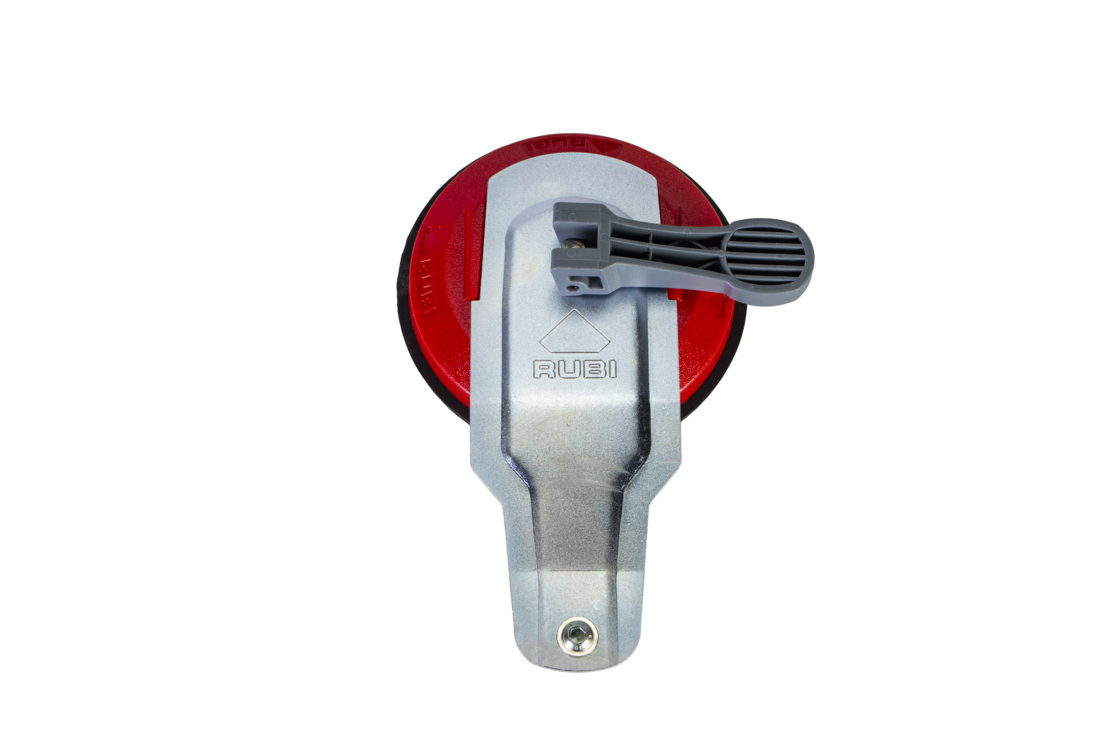

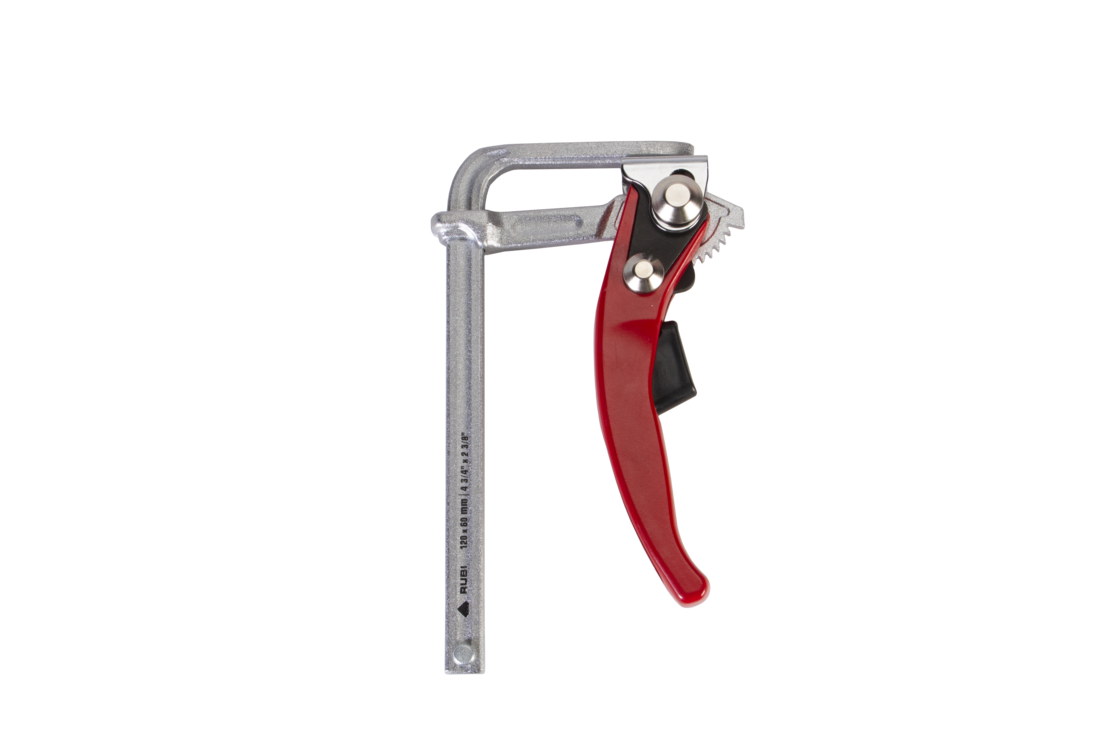

• 2 fixing suction cups for rough surfaces (RM). - 1 TCR-125 diamond disc for dry cutting (compatible with wet cutting) of porcelain stoneware (the TCR disc is not suitable for 45º cutting). - 2 clamps for additional fixing of the SLIM guide. - Tool set. - Practical textile bag for transporting the guides and rigid case for the TC-125 cutter.

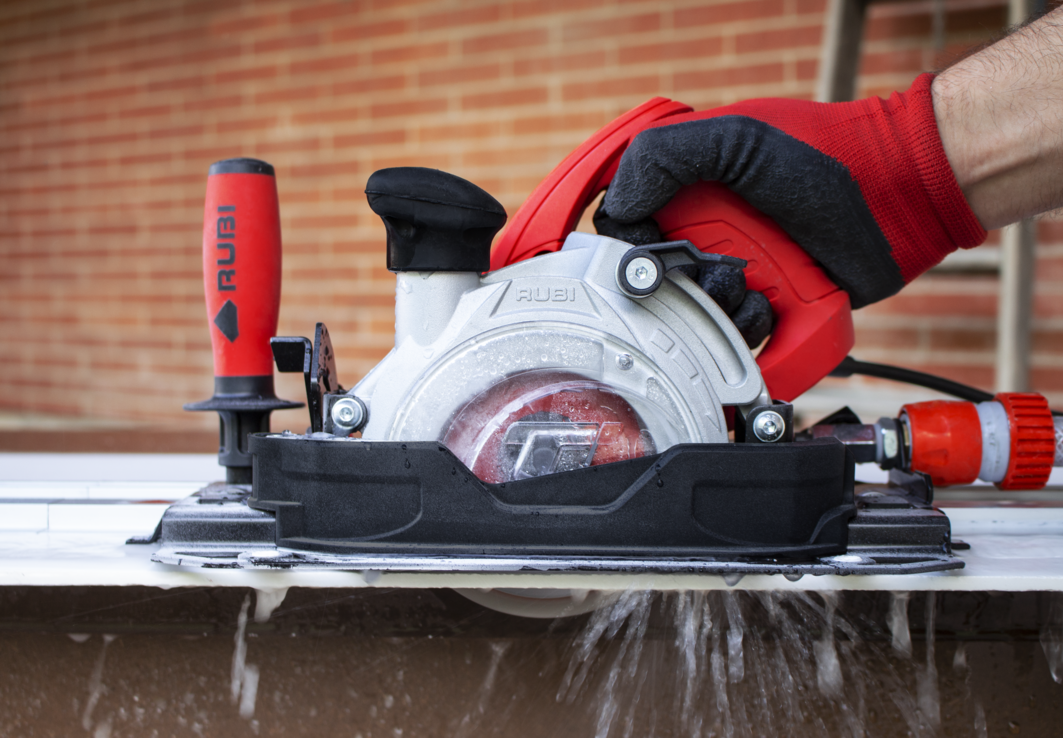

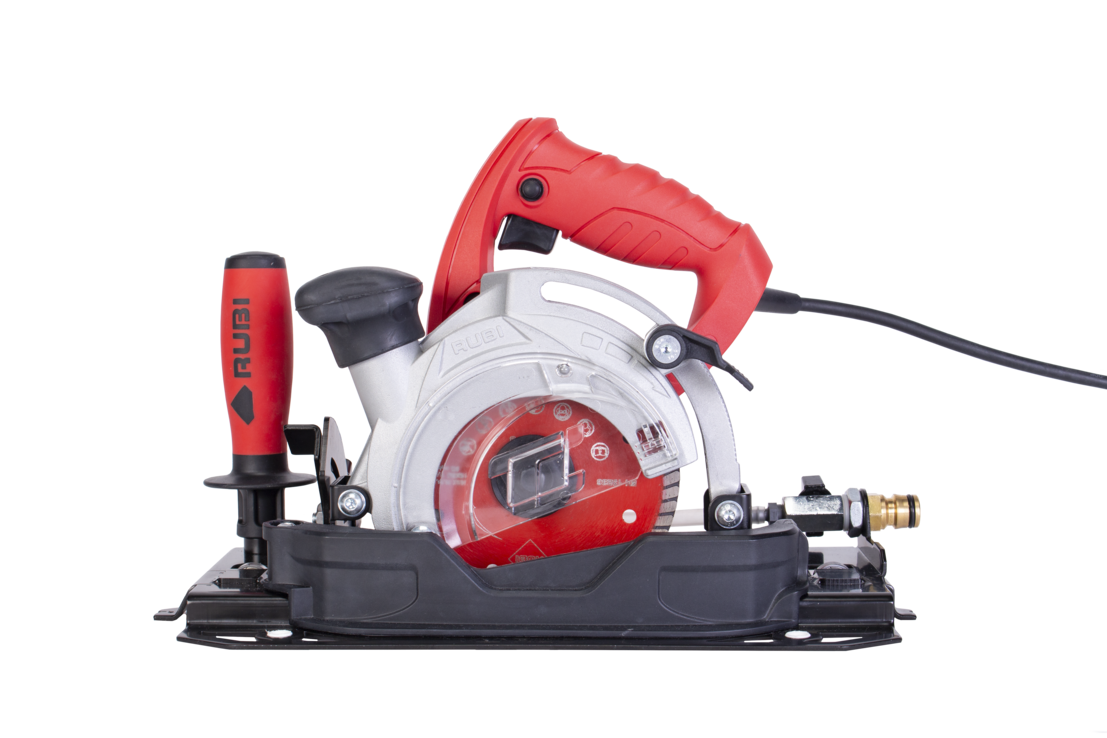

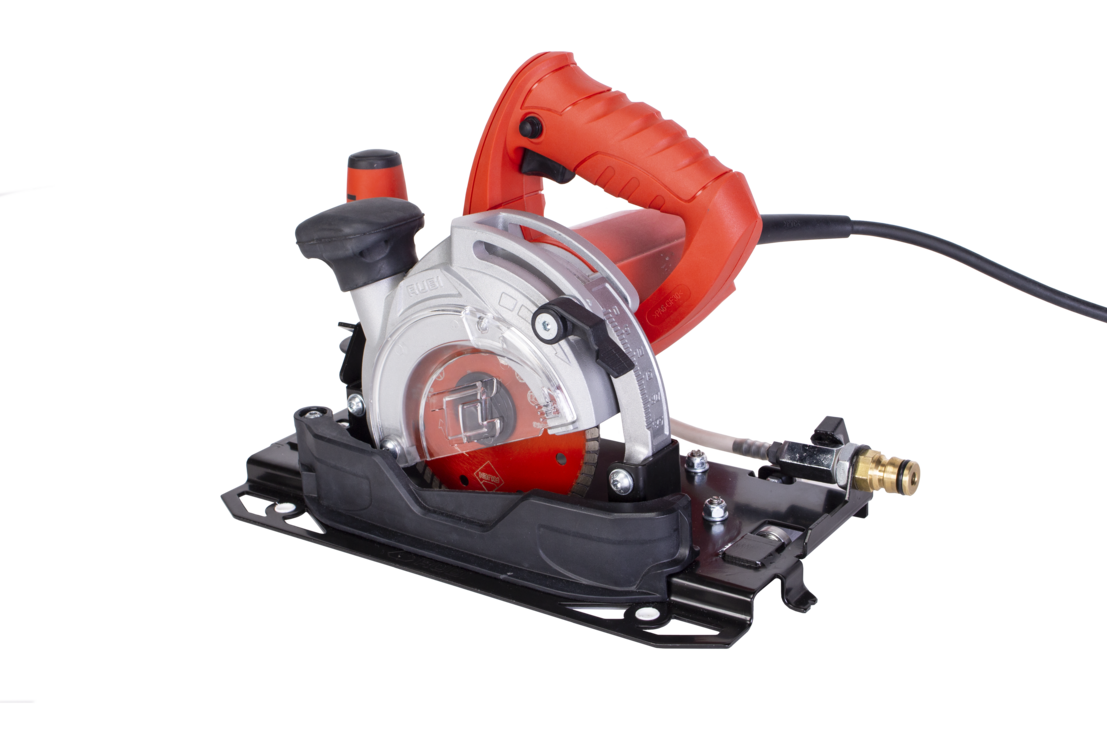

The circular cutter TC-125 of RUBI, has a double system of reduction and control of the dust generated during cutting. Either, by means of its connection to a vacuum cleaner (dry cut) or, through the intake of water.

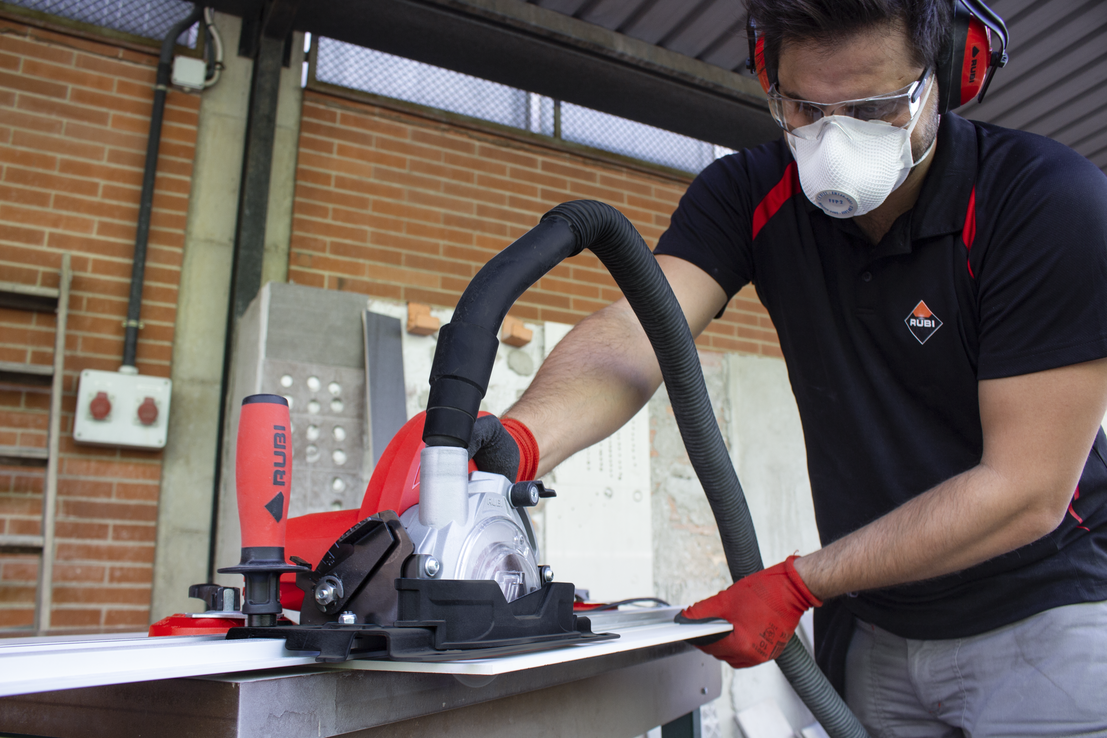

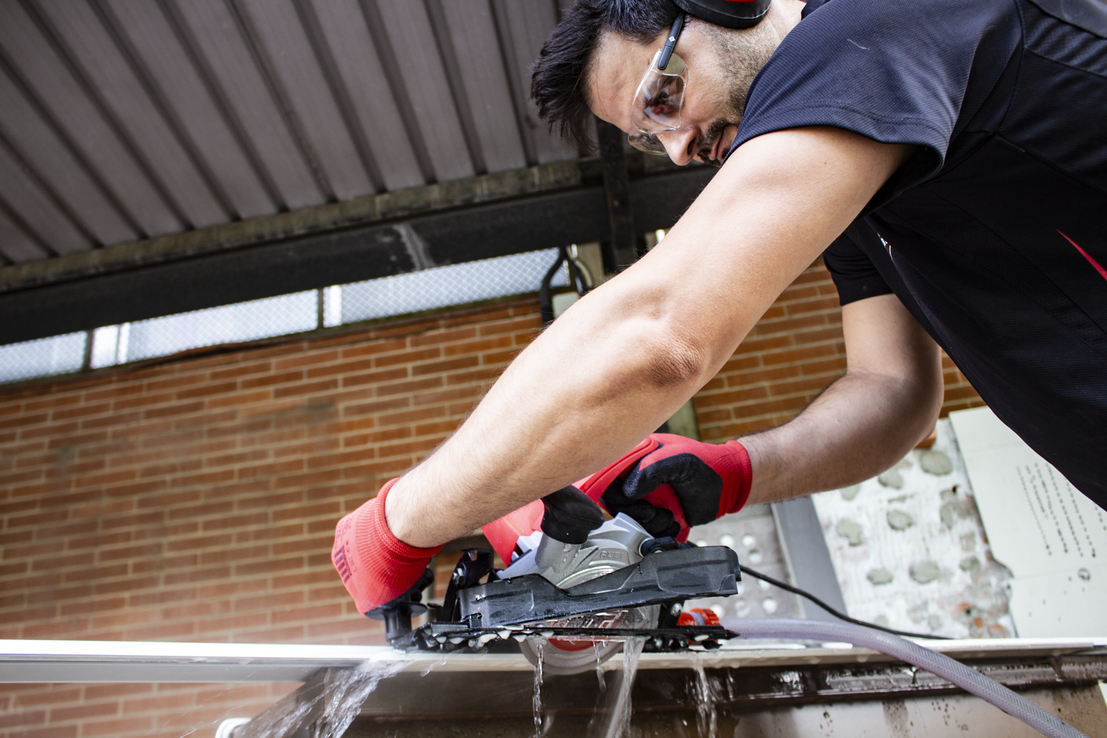

The connection to the vacuum cleaner is 32 mm, but an adapter is included for other diameters. The water intake consists of a quick connection for 16 mm hoses and a rubber stopper, which covers the intake of the vacuum cleaner and makes, during wet cutting, secondary grip functions, improving ergonomics during cutting.

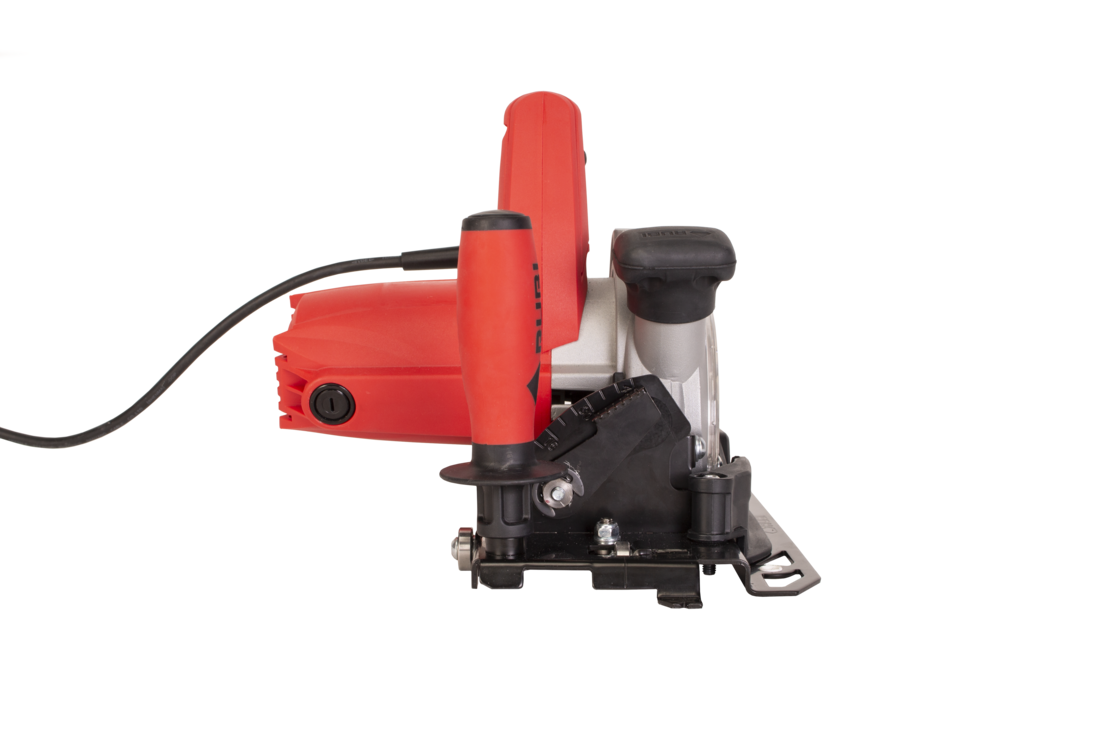

The head of the TC-125 is foldable up to 45º and adjustable in height. In this way, it is possible to miter and obtain special cuts and with greater precision (it must be borne in mind that the thickness of the cut varies according to the diameter of the disc).

For miter cutting, the TC-125 includes an additional handle that increases control and visibility during cutting and improves work ergonomics.

You can use two disc diameters: 115 and 125 mm (see cutting thickness for each diameter).

The switch of the TC-125 has a safety lock that prevents unintentional starting, and an electric cable with PRCD to protect the equipment from power surges.

For the design of the TC-125. The incorporation of a disc protector with a quick opening lid has been taken into account, which facilitates the disc change and reduces particle projection. In addition, a side protector improves the performance of the dust control system.

FEATURES

• 📄 NECESSARY the use of SLIM SYSTEM guides.
• Double dust reduction/control system. Dry and wet cutting.
• Double dust reduction/control system. Dry and wet cutting.
• Height-adjustable cutting head (saw effect), hinged from 0° to 45°. (mitre). FAST adjustment system.
• More ergonomic. Additional BI-MATERIAL handle, mainly for mitre cuts.
